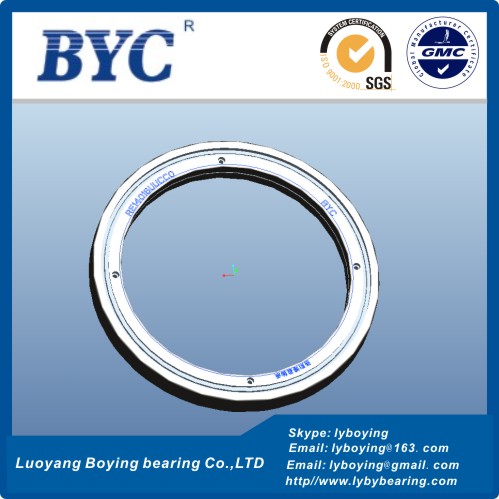

RE45025UUCC0 (dxDxB:450x500x25mm) Crossed Roller Bearings|Robotic Bearings|BYC

Author： Release time：2016-05-18 Browse times：2940

RE45025UUCC0 (dxDxB:450x500x25mm) Crossed Roller Bearings\|Robotic Bearings\|BYC
A . Crossed Roller Bearings Parameters
Brand-	BYC
Model number-	RE45025UUCC0
Inner ring(mm)-	450
Outer ring(mm)-	500
Width(mm)-	25
Weight(Kg)-	6.6
Materials-	GCR15/GCR15SiMn
Precision-	P5/P4/P2
Lubrication-	Grease lubrication
Rotating part-	Outer Ring Rotation
Load direction-	Multi-load
Structure-	Separable Inner Ring

B . RE45025 Crossed Roller Bearings Specification Sheet

Model Number	Main dimensions						Mounting dimensions		Basic load rating (radial)		weight
	Inner ring d (mm)	Outer ring D(mm)	Roller pitch circle dp(mm)	Width B(mm)	Greasing hole φ	Chamfer r(min)	ds	Dh	C kN	C0 kN	Kg
RE45025	450	500	476.6	25	1.5	1.5	464	484	61.7	182	6.6

C . RE type Crossed Roller Bearings Details
Product Features	BYC Crossed roller bearings are lightweight, compact bearings with thinnest possible inner and outer rings with high rigidity, because of its vertical arrangement of cylindrical rollers with a 90°V groove through the separate spacers in the deep groove rolling surface. This special design allows just one bearing to carry loads in all directions including radial, axial and moment loads.
Series Introduction	RE standard type is an innovative bearing based on the design of the RB standard type bearing. The inner ring is separable while the outer ring is integrated into the main body. It is being used in cases where the high rotational accuracy of the outer ring is required.
Series Model No.	RE4010,RE4510,REB5013,RE6013,RE7013,RE8016,RE9016,RE10016,RE10020,RE11012,RE11015,RE11020,RE12016,RE12025,RE13015,RE13025,RE14016,RE14025,RE15013,RE15025,RE15030,RE16025,RE17020,RE18025,RE19025,RE20025,RE20030,RE20035,RE22025,RE24025,RE25025,RE25030,RE25040,RE30025,RE30035,RE30040,RE35020,RE35025,RE40035,RE40040,RE45025,RE50025,RE50040,RE50050,RE60040
Applications	Product Application ?Industrial Robotic arm,Reducer drive ?precision Turntable,NC rotary table ?Rotation part of Machine tools ?Inspection instrument,Medical equipment ? Aviation equipment,Military radar etc

D . Installation for Cross roller Bearings
Installation for Cross roller Bearings-Click Here
