XU120179 (dxDxB:124.5x234x35mm)Crossed Roller Bearings|Robotic Bearings|BYC

Author： Release time：2016-05-20 Browse times：3077

XU120179 (dxDxB:124.5x234x35mm)Crossed Roller Bearings|Robotic Bearings|BYC

A . Crossed Roller Bearings Parameters

Brand-

BYC

Model number-

XU120179

Inner ring(mm)-

124.5

Outer ring(mm)-

234

Width(mm)-

Weight(Kg)-

Materials-

GCR15/GCR15SiMn

Precision grade-

P5/P4/P2

Lubrication type-

Grease lubrication

Rotating part-

Inner ring/Outer ring

Load direction-

Multi-load

Structure-

Integrated Inner/Outer Ring,Mounting Hole in Outer ring

B . XU120179 Crossed Roller Bearings Specification Sheet

Model
Number

Main dimensions

Fixing Hole
(Outer ing)

Fixing Hole
(Inner ing)

Basic load
rating
(Axial)

Basic load
rating
(Radial)

Weight
Kg

Inner
ring
d(mm)

Outer
ring
D(mm)

Roller pitch
circle
dp(mm)

Width
B
(mm)

φLa

Number
na

φLi

Number
ni

Ca
KN

Coa
KN

Cr
KN

Cor
KN

XU120179

124.5

234

179

214

12-φ11

144.5

12-φ11

118

179

C . XU type Crossed Roller Bearings Details

Product Features

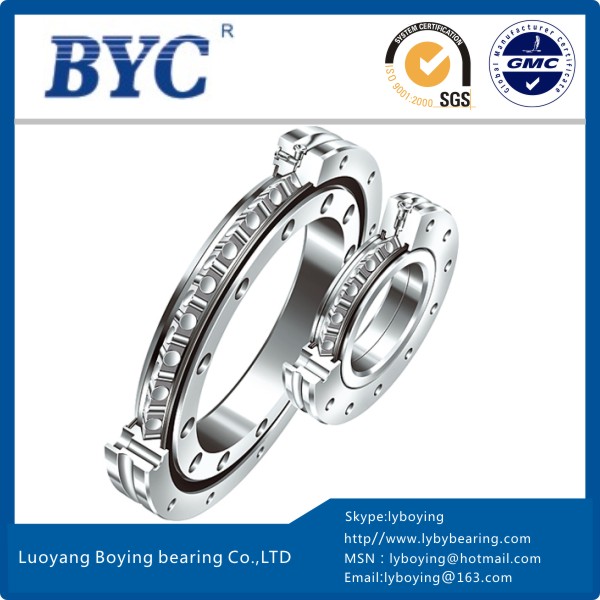

BYC Crossed roller bearings are lightweight, compact bearings with thinnest possible inner and outer rings with high rigidity, because of its vertical arrangement of cylindrical rollers with a 90°V groove through the separate spacers in the deep groove rolling surface. This special design allows just one bearing to carry loads in all directions including radial, axial and moment loads.

Series Introduction

XU special type is a bearing with integrated inner and outer ring. It is being used in cases where high rotational accuracy of both the inner and outer rings is required.

Series Model No.

XU050077,XU060094,XU060111,XU080120,XU080149,XU120179,XU120222,XU160260,XU080264,XU160405,XU080430,XU300515

Applications

Product Application
?Industrial Robotic arm,Reducer drive
?precision Turntable,NC rotary table
?Rotation part of Machine tools
?Inspection instrument,Medical equipment
? Aviation equipment,Military radar etc

D . Installation for Cross roller Bearings

Installation for Cross roller Bearings-Click Here
