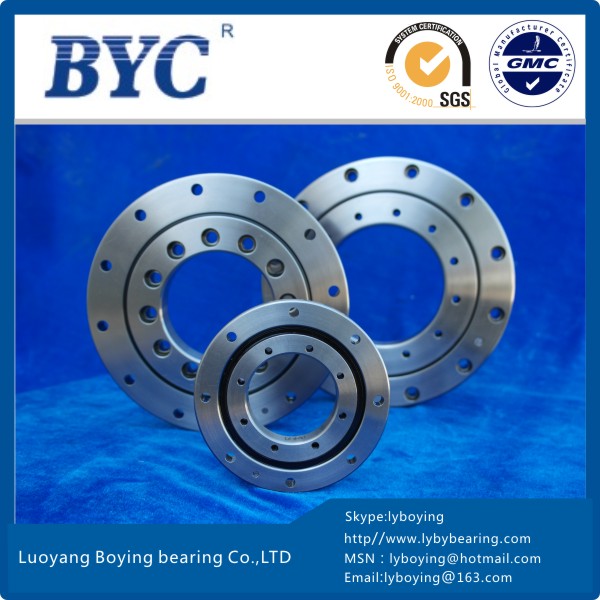

RU148GUUCC0 (IDxODxThick:90x210x25mm) Crossed Roller Bearings|Robotic Bearings|BYC
Author： Release time：2016-05-12 Browse times：3053
| RU148GUUCC0 (IDxODxThick:90x210x25mm) Crossed Roller Bearings|Robotic Bearings|BYC | |||||||||||
| A . Crossed Roller Bearings Parameters | |||||||||||
| Brand- | BYC | ||||||||||
| Model number- | RU148GUUCC0 | ||||||||||
| Inner ring(mm)- | 90 | ||||||||||
| Outer ring(mm)- | 210 | ||||||||||
| Width(mm)- | 25 | ||||||||||
| Weight(Kg)- | 4.9 | ||||||||||
| Materials- | GCR15/GCR15SiMn | ||||||||||
| Precision- | P5/P4/P2 | ||||||||||
| Lubrication- | Grease lubrication | ||||||||||
| Rotating part- | Inner ring/Outer ring | ||||||||||
| Load direction- | Multi-load | ||||||||||
| Structure- | Integrated Inner/Outer Ring | ||||||||||
| B . RU148 Crossed Roller Bearings Specification Sheet | |||||||||||
 | |||||||||||
| Model Number | Main dimensions | Mounting dimensions | Basic load rating (radial) | weight | |||||||
| Inner ring d (mm) | Outer ring D(mm) | Roller pitch circle dp(mm) | Width B(mm) | Greasing hole φ | Chamfer r(min) | ds | Dh | C kN | C0 kN | Kg | |
| RU148 | 90 | 210 | 147.5 | 25 | 3.1 | 1.5 | 133 | 162 | 49.1 | 76.8 | 4.9 |
| C . RU type Crossed Roller Bearings Details | |||||||||||
| Product Features | BYC Crossed roller bearings are lightweight, compact bearings with thinnest possible inner and outer rings with high rigidity, because of its vertical arrangement of cylindrical rollers with a 90°V groove through the separate spacers in the deep groove rolling surface. This special design allows just one bearing to carry loads in all directions including radial, axial and moment loads. | ||||||||||
| Series Introduction | RU special type is a bearing with integrated inner- and outer ring. It is being used in cases where high rotational accuracy of both the inner- and outer rings is required. | ||||||||||
| Series Model No. | RU42(CRBF2012),RU66(CRBF3515),RU85(CRBF5515), RU124,RU124G,RU124X(CRBF8022), RU148,RU148G,RU148X RU178,RU178G,RU178X RU228,RU228G,RU228X RU297,RU297G,RU297X RU445,RU445G,RU445X | ||||||||||
| Applications | Product Application ?Industrial Robotic arm,Reducer drive ?precision Turntable,NC rotary table ?Rotation part of Machine tools ?Inspection instrument,Medical equipment ? Aviation equipment,Military radar etc | ||||||||||
| D . Installation for Cross roller Bearings | |||||||||||
| Installation for Cross roller Bearings-Click Here | |||||||||||
