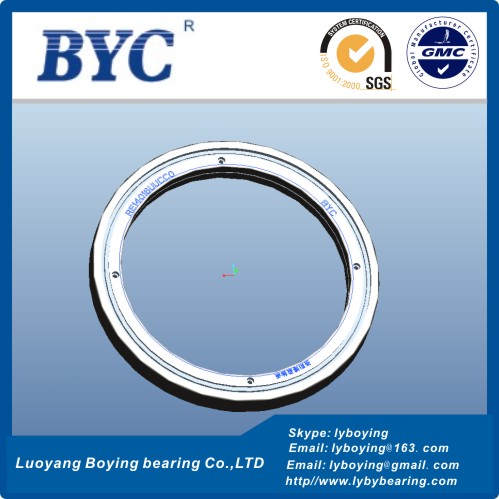

RE11012UUCC0 (dxDxB:110x135x12mm) Crossed Roller Bearings|Robotic Bearings|BYC

Author： Release time：2016-05-18 Browse times：2942

RE11012UUCC0 (dxDxB:110x135x12mm) Crossed Roller Bearings\|Robotic Bearings\|BYC
A . Crossed Roller Bearings Parameters
Brand-	BYC
Model number-	RE11012UUCC0
Inner ring(mm)-	110
Outer ring(mm)-	135
Width(mm)-	12
Weight(Kg)-	0.4
Materials-	GCR15/GCR15SiMn
Precision-	P5/P4/P2
Lubrication-	Grease lubrication
Rotating part-	Outer Ring Rotation
Load direction-	Multi-load
Structure-	Separable Inner Ring

B . RE11012 Crossed Roller Bearings Specification Sheet

Model Number	Main dimensions						Mounting dimensions		Basic load rating (radial)		weight
	Inner ring d (mm)	Outer ring D(mm)	Roller pitch circle dp(mm)	Width B(mm)	Greasing hole φ	Chamfer r(min)	ds	Dh	C kN	C0 kN	Kg
RE11012	110	135	123.3	12	1.5	1	117	127	12.5	24.1	0.4

C . RE type Crossed Roller Bearings Details
Product Features	BYC Crossed roller bearings are lightweight, compact bearings with thinnest possible inner and outer rings with high rigidity, because of its vertical arrangement of cylindrical rollers with a 90°V groove through the separate spacers in the deep groove rolling surface. This special design allows just one bearing to carry loads in all directions including radial, axial and moment loads.
Series Introduction	RE standard type is an innovative bearing based on the design of the RB standard type bearing. The inner ring is separable while the outer ring is integrated into the main body. It is being used in cases where the high rotational accuracy of the outer ring is required.
Series Model No.	RE4010,RE4510,REB5013,RE6013,RE7013,RE8016,RE9016,RE10016,RE10020,RE11012,RE11015,RE11020,RE12016,RE12025,RE13015,RE13025,RE14016,RE14025,RE15013,RE15025,RE15030,RE16025,RE17020,RE18025,RE19025,RE20025,RE20030,RE20035,RE22025,RE24025,RE25025,RE25030,RE25040,RE30025,RE30035,RE30040,RE35020,RE35025,RE40035,RE40040,RE45025,RE50025,RE50040,RE50050,RE60040
Applications	Product Application ?Industrial Robotic arm,Reducer drive ?precision Turntable,NC rotary table ?Rotation part of Machine tools ?Inspection instrument,Medical equipment ? Aviation equipment,Military radar etc

D . Installation for Cross roller Bearings
Installation for Cross roller Bearings-Click Here

m.scsyhbkj.com
www.lybybearing.com


BYC Bearings, Crossed roller bearing , Thin section bearing , Turntable bearing , Roller Bearing ,Bearing ,Slewing bearing ,Robotic bearing ,Rotary Table Bearing , YRT Rotary Table Bearing ,Angular Contact Ball Bearing,Thin section ball bearing

Last article：RE11015UUCC0 (dxDxB:110x145x15mm) Crossed Roller Bearings|Robotic Bearings|BYC

Next article：RE10020UUCC0 (dxDxB:100x150x20mm) Crossed Roller Bearings|Robotic Bearings|BYC
