Product Features | Axial radial bearings YRT are axial and radial combined cylindrical roller bearings, including two thrust needle roller bearings and a radial cylindrical roller bearing with the combination of axial and radial preload, For the convenience of transportation and fixing, two or three symmetrical screws are fastened to the two rings in order to prevent rollers and rings generating collisions which influence bearing accuracy. | |||||||||||||||||
Series Introduction |

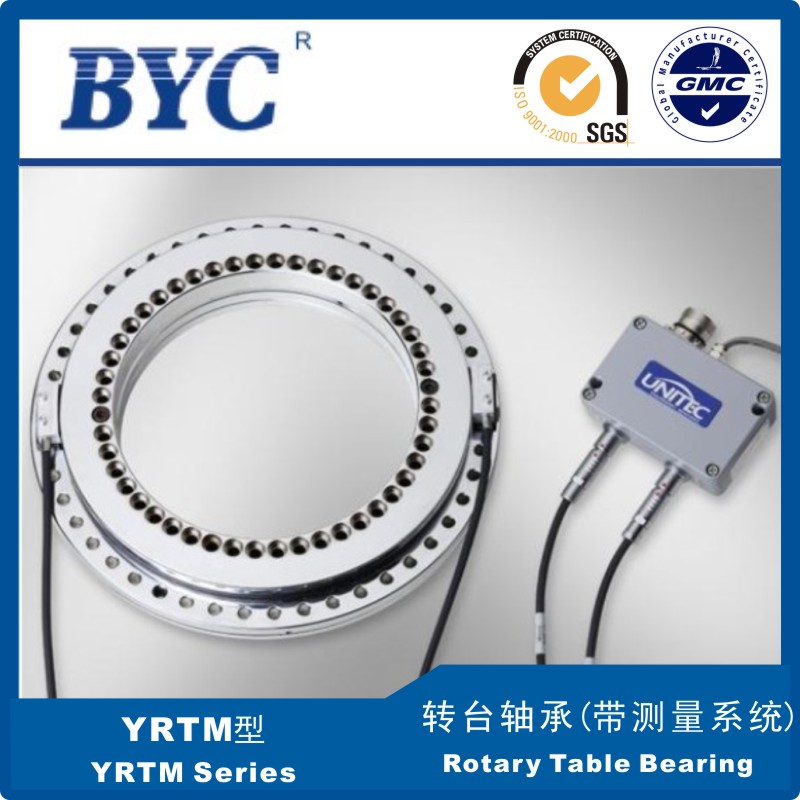

Axial/radial bearing YRTM: Bearing of YRTM series correspond in the double direction thrust cylindrical roller combined bearing YRT but are additionally fitted with a steel ruler, to control and adjust the double direction thrust cylindrical roller bearing rotation accuracy, and guarantee the machine high precision operation. | |||||||||||||||||

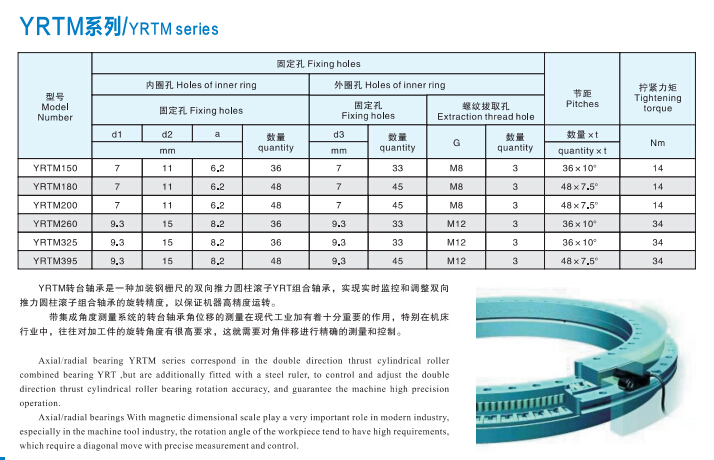

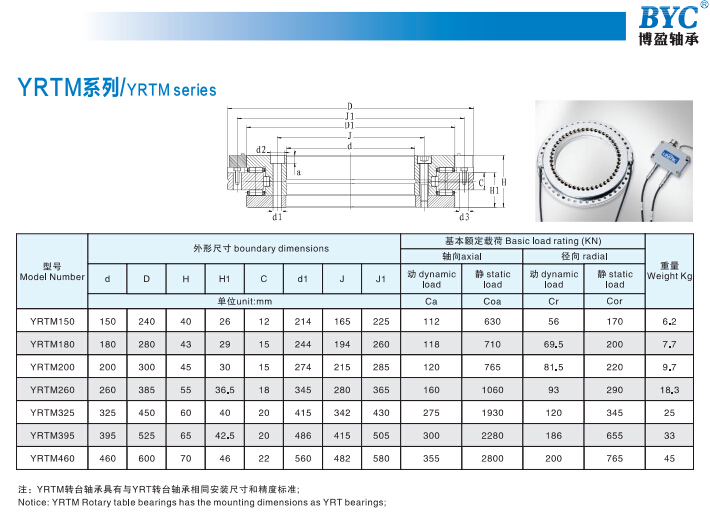

Series Model No. | (Click the link below to view detailed parameters of each model) YRTM150, YRTM180, YRTM200, YRTM260, YRTM325, YRTM395, YRTM460, YRTM580 | |||||||||||||||||
| Applications | ?Precision machine tools ?precision Turntable, NC rotary table ?Rotation part of Machine tools ?Inspection instrument,Medical equipment ?Indexing plate of other precision machines etc | |||||||||||||||||
3D Model of Crossed Roller Bearing and YRT Rotary Table Bearing for Robotic and CNC design,
The link is: http://yun.baidu.com/share/home?uk=35432805&view=album
